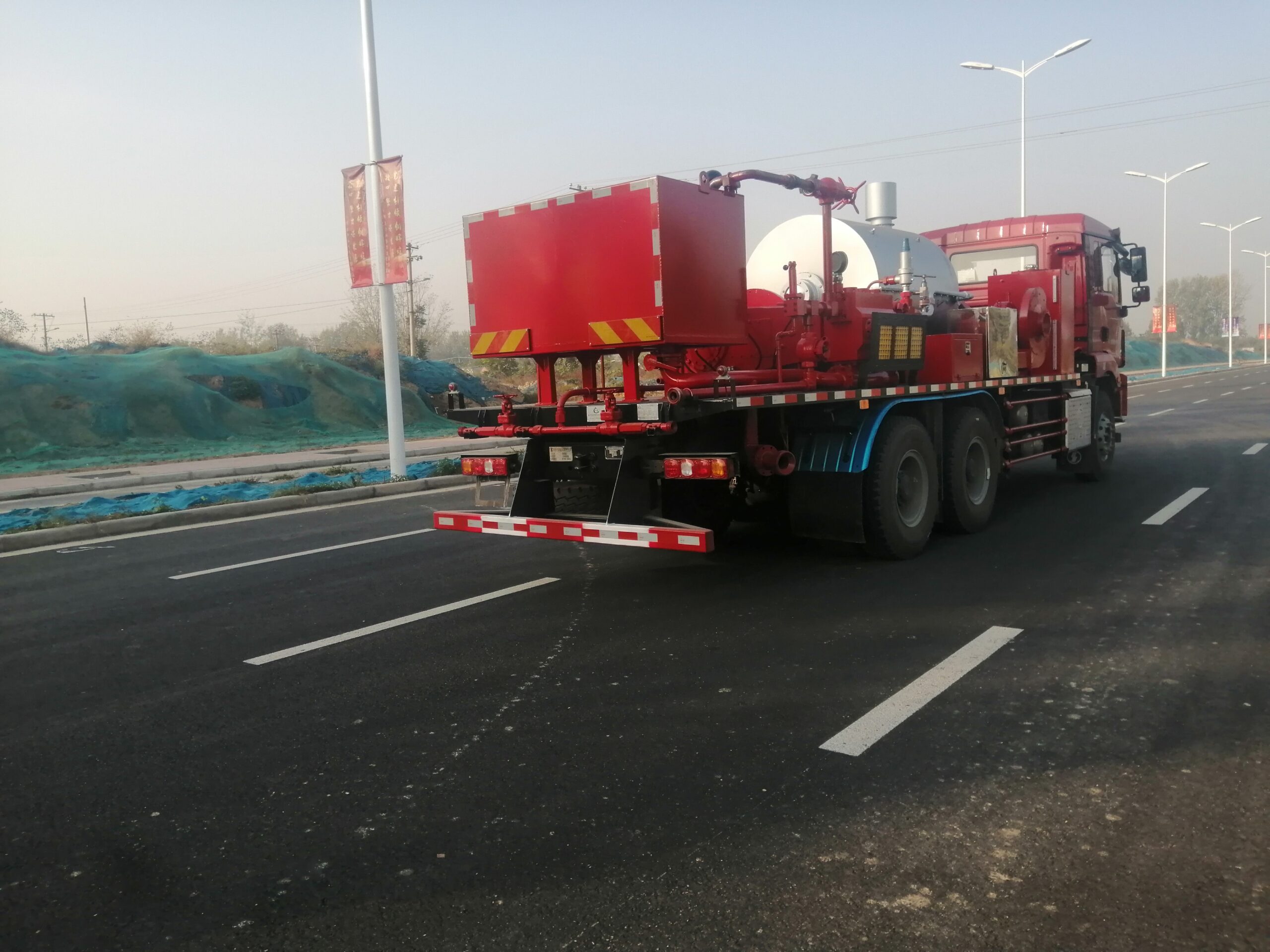

Oilfield Nitrogen Pumping Truck Applications and How It Works

Working principle in one operating sequence

The exact sequence depends on the configuration, but every oilfield nitrogen pumping truck should be operated from an approved job program. The objective is pressurizing and delivering nitrogen for well intervention, unloading, pressure testing and stimulation support. Before startup, the crew verifies placement, connections, utilities, fluid path, protective devices and communication with the wellsite supervisor.

1. Plan and isolate.Confirm the job envelope, permits, line-up and emergency roles.
2. Connect and inspect.Inspect cryogenic or gaseous nitrogen pump, vaporizer or heat exchanger, hoses, manifolds and instruments.
3. Start at minimum load.Establish lubrication, circulation or pilot conditions before increasing duty.
4. Ramp and stabilize.Increase rate, pressure, temperature or load gradually while checking limits.
5. Shut down and record.Depressurize, cool, drain or purge safely and capture operating data.

Common applications and configuration priorities

The same basic package can require different controls and auxiliaries in each application. For example, a unit selected for nitrogen lift may prioritize a different operating range than one used for pipeline pressure testing. Do not assume a maximum rating guarantees stable operation at the lower or transient points.

Site interfaces to settle before mobilization

At remote sites, small interface omissions cause disproportionate delay. Prepare adapters, spare seals, calibrated gauges, earthing cables, lighting and weather protection before the truck or skid arrives.

What operators should monitor

Trend the variables that prove the job is within its approved envelope. These normally include maximum discharge pressure, nitrogen rate, liquid or generated supply, job duration, cold-end and material requirements. Watch the rate of change as well as absolute values: a rising temperature, vibration, differential pressure or leakage trend can reveal a developing restriction or component problem before a shutdown occurs.

Record startup, stable operation, interruptions and shutdown conditions. Good job records improve the next equipment selection and help engineering teams distinguish a process limitation from a mechanical fault.

Oilfield Nitrogen Pumping Truck project-specific engineering focus

A field-ready package must satisfy the process duty while remaining serviceable, transportable and understandable to the operating crew. During nitrogen lift, operators must watch maximum discharge pressure and the condition of the cryogenic or gaseous nitrogen pump. For well unloading, the operating window may be controlled instead by nitrogen rate and the response of the vaporizer or heat exchanger. Procedures for foam stimulation and pipeline pressure testing should identify different startup, stabilization and shutdown hold points.

Use the four intended duties as separate review cases: nitrogen lift, well unloading, foam stimulation and pipeline pressure testing. For each case, record the starting condition, target output, operating duration, expected variation and shutdown condition. This exposes whether a shared configuration is genuinely suitable or whether a different control range, material, auxiliary system or connection set is needed.

The RFQ should therefore carry a project data sheet, interface drawing and deviation schedule. That combination gives the manufacturer enough information to explain the design and gives the buyer a consistent basis for technical evaluation, factory testing and later commissioning.
